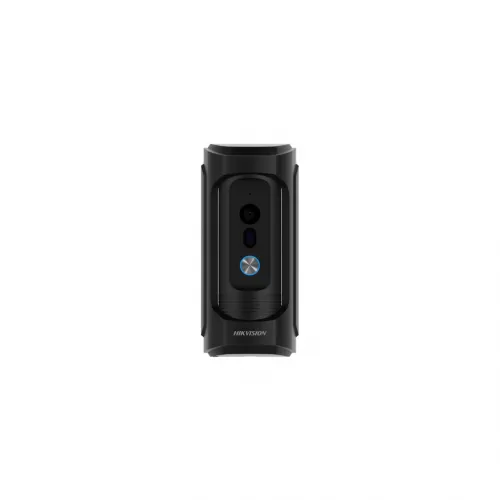

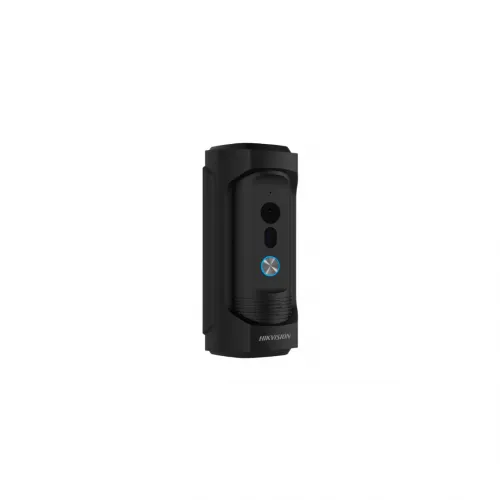

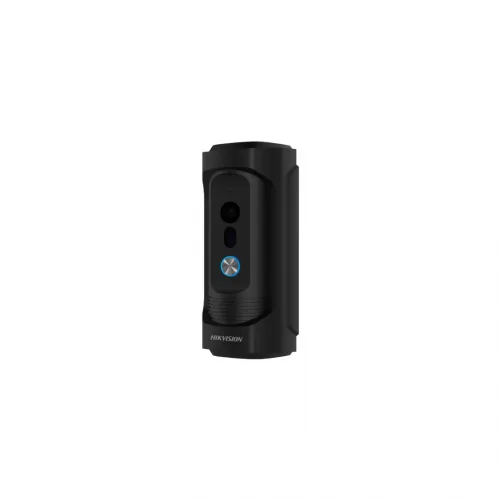

DS-KB8113-IME1(B)
Available modelsDS-KB8113-IME1(B)
Seriya8 Series Video Doorbells
Kilidi açma tipiExit Button
Sistem tipiIP
TətbiqMəniz & Villa
QuraşdırmaDivarüstü
WeightGross Weight: 0.992 kgNet Weight: 0.795 kg
LanguageEnglish,French,Portuguese,Spanish,Russian,German,Italian,Polish,Arabic,Turkish,Vietnamese,Hungarian,Dutch,Romanian,Czech,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Slovakia,BrazilianPortuguese
QətnaməMain stream : 1920 × 1080Sub stream : 640 × 480
WDRSupport
FOVHorizontal:95°Vertical:54°
Əməliyyat üsulu/
Type/
Lens1
Wired network10/100 Mbps self-adaptive Ethernet
Lock control1 (1 relay, max to 30 VDC, 2 A)
Face capacity/
Card capacity/
Power supplyIEEE802.3af, standard PoE or12 VDC
Working temperature-30° C to +50° C(-22° F to 122° F)
Protective levelIP65, IK09
QuraşdırmaSurface mounting
RAM256 M
ROM32 M
CPUEmbedded MCU Processor
Supplement lightIR supplement
Audio inputBuilt-in omnidirectional microphone
Audio outputBuilt-in loudspeaker (More than 80 dB within 30 cm)
Audio compression bitrate64 Kbps
Volume adjustmentAdjustable
3G/4G standard/
Alarm input1
Battery/
Application environmentOutdoor and Indoor
Power consumption＜ 10 W
Linked indoor station capacity1
Debugging port1
Network protocolTCP/IP, RSTP, SIP
Sub door station capacity16
Dimensions (L x W x H)161.85 mm × 74.13 mm × 53.2 mm(6.37" × 2.92" × 2.09")
- Mövcudluq: Anbarda
- Model: domofon
209.00m
