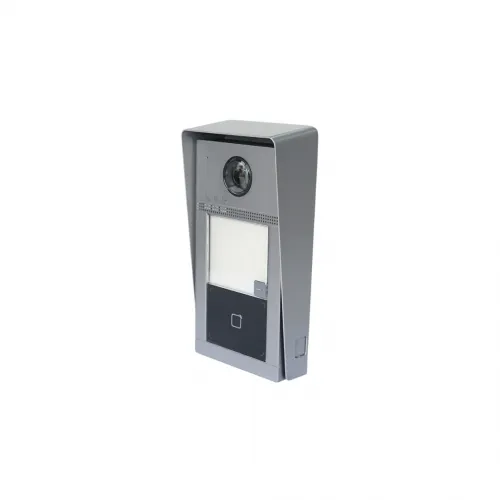

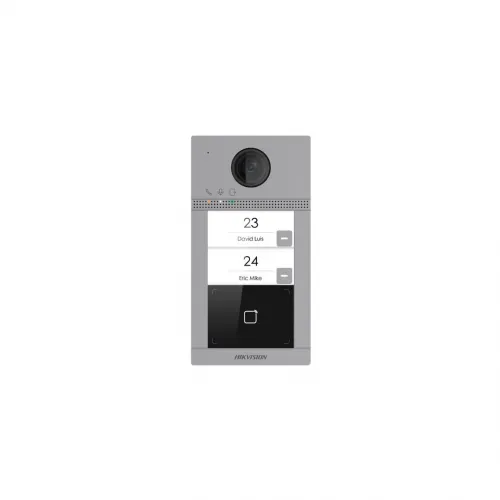

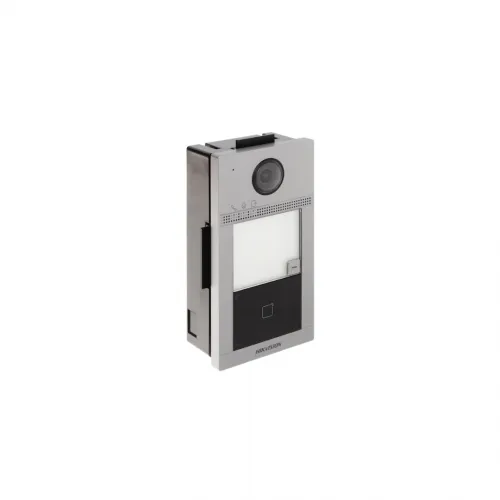

DS-KV8213-WME1(C)
Available modelsDS-KV8213-WME1(C)
Seriya8 Series Villa Door Stations
Kilidi açma tipiCard, Exit Button
Sistem tipiIP
TətbiqVilla
RS-4851
Weight384 g
LanguageEnglish, French, Portuguese, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak
Indicator3
QətnaməMain stream : 1920 × 1080Sub stream : 640 × 480
WDRSupport
Dimensions174 mm × 91 mm × 29 mm
FOVHorizontal: 124° Vertical: 75°
Əməliyyat üsulu/
Type/
Lens1
Wired network10/100 Mbps self-adaptive Ethernet
Lock control2
Exit button2 Max.
Door contact input2
TAMPER1
Wiegand0
USB0
Card capacity10000
Card reading frequency13.56 MHz
Working temperature-40° C to 53° C (-40° F to 127.4° F)
Protective levelIP65, IK08
QuraşdırmaFlush mounting
RAM256 M
ROM32 M
CPUEmbedded MCU Processor
Supplement lightIR supplement
Audio inputBuilt-in omnidirectional microphone
Audio outputBuilt-in loudspeaker (more than 80 dB within 30 cm)
Audio compression bitrate64 Kbps
Volume adjustmentAdjustable
Communication protocolTCP/IP, RTSP
3G/4G standard/
Alarm input4
TF card1(Reserved)
Battery/
Application environmentOutdoor
Power consumption＜ 10 W
Alarm output0
User capacity2000
Linked indoor station capacity2(main indoor station)
Sub door station capacity16
Bandwidth20/40 MHz
Received frequency2.4 to 2.4835GHz
Transmitted frequency2.4 to 2.4835 GHz
Frequency power802.11b:15 dBm +/- 1.5 dBm802.11g:15 dBm +/- 1.5 dBm802.11n(ht20):14 dBm +/- 1.5 dBm802.11n(ht40):12 dBm +/- 1.5 dBm
- Mövcudluq: Anbarda
- Model: domofon
320.00m
